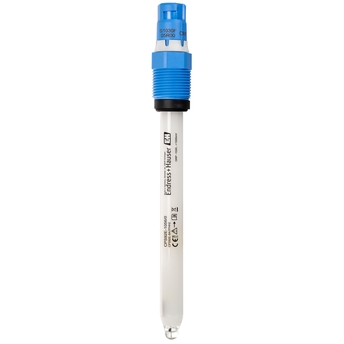

Memosens CPS92E - Digital ORP sensor for chemical processes, paper or pigment production

Digital ORP sensor
Memosens CPS92E

Memosens 2.0 glass sensor for heavily polluted media in chemical industry, paper, pigment production

CPS92E
Loading price
Prices temporarily unavailable
Price on request
activating price
price: provide information
from CHF ??.-
Memosens CPS92E - Digital ORP sensor for chemical processes, paper or pigment production
  • F
  • L
  • E
  • X
©Endress+Hauser

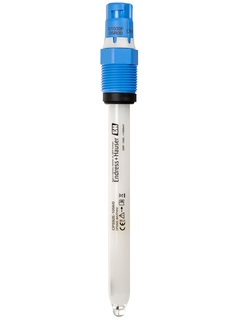

Memosens CPS92E - Digital ORP sensor for dispersions, precipitations and emulsions, Ex version
  • F
  • L
  • E
  • X
©Endress+Hauser

Specs at a glance

  • Measuring range

    –1 500 to 1 500 mV

  • Process temperature

    0 to 110 °C (32 to 230 °F)

  • Process pressure

    0.8 to 14 bar (11.6 to 203 psi) (absolute)

Field of application

Memosens CPS92E with platinum cap is specialized on media with a high content of suspended solids such as dispersions, precipitations or emulsions. The open aperture prevents fouling and ensures the most reliable measurement. Thanks to Memosens 2.0 digital technology, CPS92E combines maximum process integrity with simple operation. It resists moisture, enables lab calibration and offers extended storage of calibration and process data providing the perfect basis for predictive maintenance.

  • Chemical processes

  • Pulp and paper industry

  • Contaminated media and suspended solids
    - Dispersions
    - Precipitations
    - Emulsions

With ATEX, IECEx, CSA C/US, NEPSI, Japan, INMETRO approvals for use in hazardous areas, zones 0, 1 and 2.

Benefits

  • Memosens 2.0 offers extended storage of calibration and process data, enabling better trend identification and providing a future-proof basis for predictive maintenance and enhanced IIoT services.

  • Open aperture for application in heavily soiled media: Junction cannot be blocked by fibres or suspended solids.

  • Not affected by fluctuations in pressure and temperature: Thanks to open aperture no diffusion potential can build up at the junction.

  • Low maintenance and long lifetime due to stabilized gel filling

  • Maximum process safety through non-contact inductive signal transmission

  • Reduced operating costs thanks to minimized process downtime.
