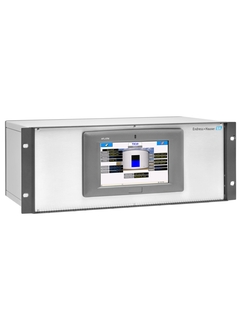

Tankvision Multi Scan NXA83B – product picture

Tankvision Multi Scan NXA83B

Gateway component for Tank Gauging systems

NXA83B
Loading price
Prices temporarily unavailable
Price on request
activating price
price: provide information
from CHF ??.-
Tankvision Multi Scan NXA83B– product picture
  • F
  • L
  • E
  • X
©Endress+Hauser

Specs at a glance

  • Input

    3 versions:
    4 Channel; 12 Channel; 20 Channel
    With following possible protocols:
    Modbus RS485; V1; WM550;
    Tokyo Keiso FW9000; Varec
    Mark/Space; Saab TRL/2; Enraf
    BPM; Scientific Instruments;
    Modbus Ethernet

  • Output

    OPC DA; Modbus RS485; Modbus Ethernet

Field of application

Tankvision Multi Scan NXA83B is an Tank Gauging system with completley integrated software for operation via remote access and standard web browser. It scans parameters from tank gauges and performs tank calculations. Tankvision Multi Scan allows legacy protocol management as well as gradual upgrades for more flexibility. Due to its modular structure it is ideally suited for medium size tank farms with only a few tanks, but also for large refineries with hundreds of tanks.

Tankvision Multi Scan NXA83B is suitable for medium size tank farms as well as large refineries with hundreds of tanks.

  • Suited for tank farms with various protocols used for communicating with the installed field devices and/or redundancy needs

  • Provides data to host systems (such as PLC or DCS) via Modbus and/or OPC

  • Ambient temperature: 0 to 55°C (32 to 131°F)

  • Approved for custody transfer applications according to PTB

Benefits

  • Precise inventory informations

  • Step-by-step site upgrade

  • High system availability

  • User access through the entire Network

  • Simplified site approval procedures

Xpert selection

  • Specialized products

  • Designed for demanding applications

Technical excellence

Simplicity

Variable

Xpert: Master your most challenging applications ©Endress+Hauser

  • Simple products

  • Easy to select, install and operate

Technical excellence

Simplicity

  • Standard products

  • Reliable, robust and low-maintenance

Technical excellence

Simplicity

  • High-end products

  • Highly functional and convenient

Technical excellence

Simplicity

  • Specialized products

  • Designed for demanding applications

Technical excellence

Simplicity

Variable

FLEX selections Technical excellence Simplicity
  • F
  • L
  • E
  • X

Fundamental selection

Meet your basic measurement needs

Technical excellence
Simplicity
  • F
  • L
  • E
  • X

Lean selection

Handle your core processes easily

Technical excellence
Simplicity
  • F
  • L
  • E
  • X

Extended selection

Optimize your processes with innovative technologies

Technical excellence
Simplicity
  • F
  • L
  • E
  • X

Xpert selection

Master your most challenging applications

Technical excellence
Simplicity

Variable
Loading alternative products

Predecessor

Success stories

  • Storage tanks containing dangerous chemicals Storage tanks containing dangerous chemicals

    Protecting our water – Keep chemicals in the tank

    Leaking or overfilled tanks can cause environmental problems, contaminate drinking water, and cost a company millions of dollars. Proper instrumentation, monitoring and control can prevent this.
