Specs at a glance
-
Output
WirelessHART communication interface
Transmission rate: Nominal 250 kBits/s
Operating frequency: 2.4 GHz (ISM band)
Transmission range under reference conditions:
Outdoor 250 m, indoor 50 m -
Display
Integral via 3 LEDs
Field of application

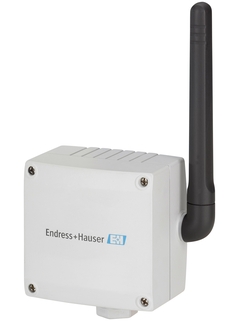

The WirelessHART Adapter SWA70 is an interface module for the wireless transmission of 4 to 20 mA/HART signals from connected field devices to a WirelessHART Fieldgate. It is powered by either a battery pack or power supply units. The WirelessHART Adapter can be used in hazardous and non-hazardous area for applications.
Process optimization: Monitor and optimize plant sections with less cost and effort by connecting the WirelessHART Adapter.
Level monitoring in tanks and silos: Measured value, device and battery status are transmitted at regular intervals to a higher-level system.
Plant condition monitoring: Wireless devices are mounted at critical points in the plant with limited accessibility or where wiring costs are limited. Improved data flow and diagnostics increase plant reliability and safety.
Benefits
HART devices are quickly upgraded to WirelessHART technology
Fast integration of 4 to 20 mA field devices into a WirelessHART network
One 4 to 20 mA field device and up to four HART field devices in multidrop mode can be connected to a WirelessHART Adapter
Burst mode and event notification supported
Remote and difficult-to-access HART devices are connected to the control room without expensive cabling
Easy planning, quick installation and integration
