4-20 mA temperature transmitter as head or DIN rail device

iTEMP TMT31 temperature transmitter

4-20 mA temperature transmitter as head or DIN rail device with one RTD or one TC sensor input suitable for use in zone 2 (Ex ec) / Div. 2 areas

TMT31
Loading price
Prices temporarily unavailable
Price on request
activating price
price: provide information

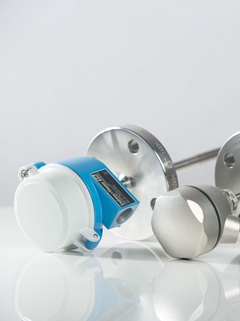

4-20 mA temperature transmitter as head or DIN rail device
  • F
  • L
  • E
  • X
©Endress+Hauser

4-20 mA temperature transmitter as head or DIN rail device

4-20 mA temperature transmitter as head or DIN rail device
  • F
  • L
  • E
  • X
©Endress+Hauser

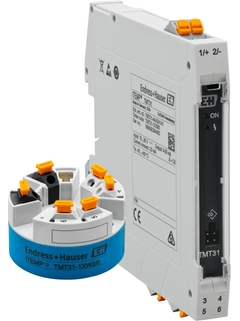

4-20 mA temperature transmitter in different variants

iTEMP TMT31 transmitters are available with various temperature assemblies
  • F
  • L
  • E
  • X
©Endress+Hauser

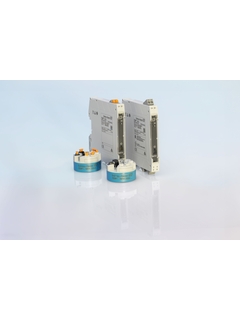

iTEMP TMT31 transmitters are available with a wide range of industrial or hygienic temperature sensors and assemblies

Temperature transmitters iTEMP TMT31 can be parametrized in the field
  • F
  • L
  • E
  • X
©Endress+Hauser

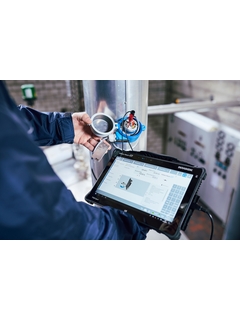

Temperature transmitter being parametrized in the field using a laptop or handheld devices such as a FieldXpert SMT70 tablet

4-20 mA temperature transmitter as head or DIN rail device

Specs at a glance

  • Accuracy

    (Pt100,Pt1000, -50…+250°C) <= 0,1 K
    (Pt100,Pt1000, -58…+482°F) <= 0,18° F

Field of application

The iTEMP TMT31 4-20 mA temperature transmitter is designed for customers in all industries who want to easily select, order, install and operate simple products. It is a reliable, long-term stable, single-channel 4-20 mA temperature transmitter for modular thermometers with form B connection head or for installation in control cabinets with DINrail mounting. The capable iTEMP TMT31 can be used with either all Pt100 and Pt1000 RTD sensors, or all common thermocouple sensors.

  • Reliability, long-term stability, high accuracy and diagnostic functions

  • Installation in industrial and hygienic thermometers with terminal head form B

  • DINrail device for installation in control cabinets

  • Available with input for either RTD thermometers or for TC thermometers

  • Can be parameterized or preprogrammed at the factory

Benefits

  • Push-in terminals for fast and tool-free wiring during installation or maintenance

  • Optimization of the accuracy of the measuring point through sensor-transmitter-matching (CvD)

  • Diagnostic information according to NAMUR NE107

  • Increased safety through Ex approvals

Videos

  • Explained in under 2 minutes - iTEMP TMT31 temperature transmitter

Fundamental selection

  • Simple products

  • Easy to select, install and operate

Technical excellence

Simplicity

FLEX: Fundamental ©Endress+Hauser

  • Simple products

  • Easy to select, install and operate

Technical excellence

Simplicity

  • Standard products

  • Reliable, robust and low-maintenance

Technical excellence

Simplicity

  • High-end products

  • Highly functional and convenient

Technical excellence

Simplicity

  • Specialized products

  • Designed for demanding applications

Technical excellence

Simplicity

Variable

FLEX selections Technical excellence Simplicity
  • F
  • L
  • E
  • X

Fundamental selection

Meet your basic measurement needs

Technical excellence
Simplicity
  • F
  • L
  • E
  • X

Lean selection

Handle your core processes easily

Technical excellence
Simplicity
  • F
  • L
  • E
  • X

Extended selection

Optimize your processes with innovative technologies

Technical excellence
Simplicity
  • F
  • L
  • E
  • X

Xpert selection

Master your most challenging applications

Technical excellence
Simplicity

Variable
