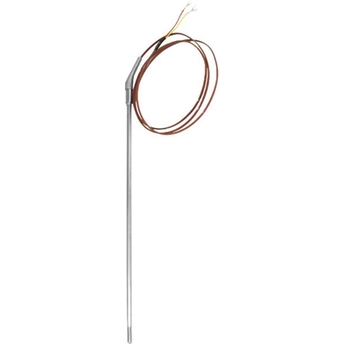

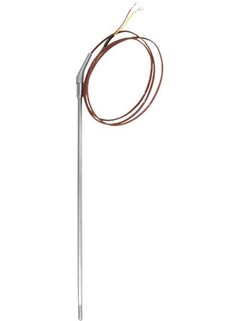

Product picture thermocouple sensor cable probe TH52

iTHERM CableLine TH52
Cable probe

Imperial TC thermometer with connecting cable for use in many process and laboratory applications

TH52

Compare

Specs at a glance

Accuracy

Standard acc. to ASTM E-230
Special acc. to ASTM E-230
Response time

63% rt = 0.3 s
Max. process pressure (static)

at 20°C: 40 bar (580 psi)'
depends on configuration
Operating temperature range

Type T:
-270 °C ...400 °C
(-454 °F ...752 °F)
Type J:
-210 °C ...1.200 °C
(-346 °F ...2.192 °F)
Type E:
-270 °C ...1.000 °C
(-454 °F ...1.832 °F)
Type K:
-270 °C ...1.372 °C
(-454 °F ...2.500 °F)
Type N:
-270 °C ... 1.300 °C
(-454 °F ...2.372 °F)
Max. immersion length on request

up to 96" (2438 mm)
others on request

See all specifications

Field of application

The thermocouple cable probe is easy to install and provide a high operational safety due to reliable and accurate temperature measurement in common processes. The probe is used in many process and laboratory applications such as heat exchangers, furnaces or dryers. Without additional thermowell the probe sheath is directly in contact with the process medium. This enables the cable probe to detect rapid temperature changes fast and accurate.

Magnesium oxide insulated thermocouples, commonly referred to as MgO thermocouples, are used in many process and laboratory applications. They have many desirable characteristics making thermocouples a good choice for general and special purpose applications.

The sensors can be used on:

Heat exchangers
Power & recovery areas
Furnaces
Dryers
Flue gas
Compressor stations
Process reactors

Benefits

Simplified model structure: Competitively priced, offers great value. Easy to order and reorder. A single model number includes sensor and transmitter assembly for a complete point solution.
Improved galvanic isolation on most devices (2 kV)
One source shopping for temperature measurement solutions. Remove and install straight out of the box!
All iTEMP® transmitters provide long term stability ≤ 0.05 % per year
